Group 4.500 Brake Control - Illustration 5

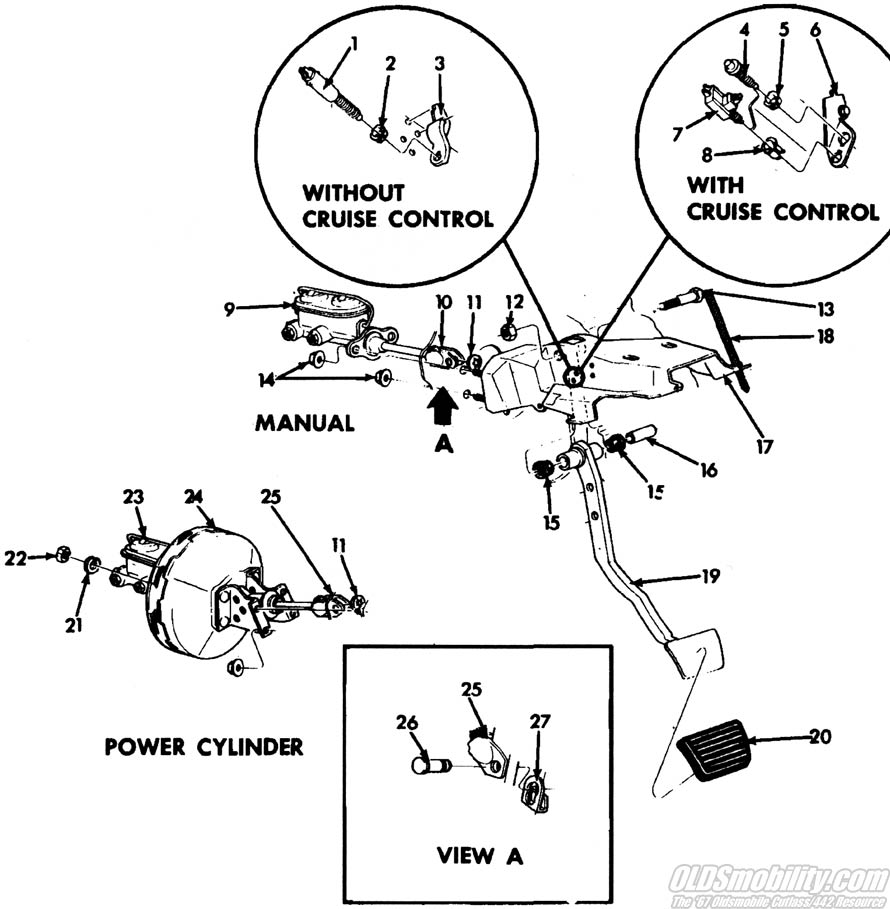

1969 F85 BRAKE PEDAL, CYLINDER & ATTACHING PARTS (TYPICAL OF 1970-72)

KEY GROUP DESCRIPTION
1 2.447 SWITCH, stop light
2 2.447 CLIP
3 2.447 BRACKET, stop light switch
4 3.887 VALVE
5 3.887 CLIP
6 3.887 BRACKET
7 2.447 SWITCH
8 3.887 CLIP
9 4.650 CYLINDER ASSY., (manual)
10 4.662 CLEVIS
11 4.662 NUT, spring zip-on
12 8.917 NUT
13 8.977 BOLT (7/16"-14 x 2-1/2")
14 3.023 NUT
KEY GROUP DESCRIPTION
15 4.626 BUSHING
16 4.634 SPACER
17 4.634 BRACKET, brake pedal mounting
18 6.760 SUPPORT, strg. column
19 4.625 ARM
20 4.630 COVER
21 3.000 WASHER
22 8.915 NUT
23 4.650 CYLINDER ASSY., (power)
24 4.901 CYLINDER ASSY., (power)
25 4.662 CLEVIS
26 4.662 PIN
27 4.662 RETAINER
