Group 3.725 - Chart 26

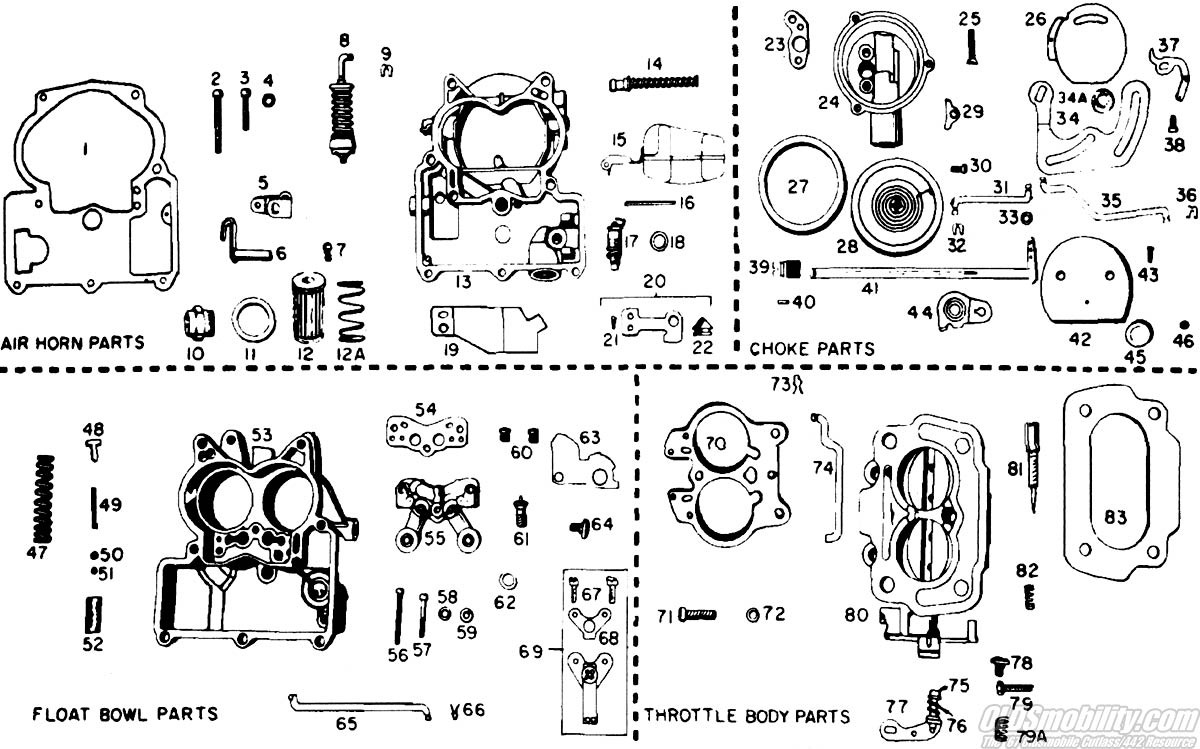

1967 ROCHESTER CARBURETOR MODEL 2GC FOR 400 (2BC) CUBIC INCH ENGINE
Exc. Climatic Combustion Control


(click here to view in higher resolution)

PARTS SHOWN ARE FOR IDENTIFICATION ONLY. CONSULT PARTS LIST FOR CORRECT PART NAME AND NUMBER.

  AUTO TRANS.
STANDARD		 AUTO TRANS.
AIR COND.		 MAN. TRANS.
STANDARD		 MAN. TRANS.
AIR COND.		 APPLICATION
7037054 7037056 7037058 7037056 CARBURETOR No.
7041840 7041840 7041840 7041840 REPLACEMENT PACKAGE No.
7016755 7016755 7016755 7016755 OVERHAUL KIT
7039114 7039114 7039114 7039114 MINOR REPAIR KIT (NEO-TIP)
7039137 7039137 7039137 7039137 MINOR REPAIR KIT (STEEL)
7016757 7016757 7016757 7016757 GASKET SET
7028944 7028945 7028944 7028945 ALTITUDE KIT
Illus. No. AIR HORN PARTS
1 7033335 7033335 7033335 7033335 Gasket—Air Horn
2 7010432 7010432 7010432 7010432 Screw—Air Horn—Long
3 7006119 7006119 7006119 7006119 Screw—Air Horn—Short
4 120217 120217 120217 120217 Lockwasher—Air Horn Screws
5 7032377 7032377 7032377 7032377 Lever—Pump—Inside
6 7006975 7006975 7006975 7006975 Pump Shaft and Lever Assembly
7 7011270 7011270 7011270 7011270 Screw—Pump Lever
8 7032280 7032280 7032280 7032280 Pump Assembly
9 7005032 7005032 7005032 7005032 Clip—Pump Plunger
10 7040955 7040955 7040955 7040955 Filter Nut
12 5651393 5651393 5651393 5651393 Filter—Fuel Inlet
12A 7032732 7032732 7032732 7032732 Spring—Filter
13 7034523 7034523 7034523 7034523 Air Horn Assembly
14 7009718 7009718 7009718 7009718 Power Piston Assembly
15 7035592 7035592 7035592 7035592 Float Assembly
16 7010037 7010037 7010037 7010037 Pin—Float Hinge
17 7023813 7023813 7023813 7023813 Needle and Seat Assembly (Neo-tip)
17 7019932 7019932 7019932 7019932 Needle and Seat Assembly (Steel
18 7019535 7019535 7019535 7019535 Gasket—Needle Seat
— 7006474 7006474 7006474 7006474 Pull Clip—Float Needle
19 7612835 7012835 7012835 7012835 Shield—Idle Vent
20 7612252 7012252 7012252 7012252 Idle Vent Valve Kit
21 7012548 7012548 7012548 7012548 Screw—Idle Vent
22 7007129 7007129 7007129 7007129 Valve—Idle Vent
CHOKE PARTS
23 7013995 7013995 7013995 7013995 Gasket—Choke Housing
24 7034287 7034287 7034287 7034287 Choke Housing Assembly
25 7019776 7019776 7019776 7019776 Screw—Choke Housing
26 7035711 70135711 7035711 7035711 Baffle Plate
27 7002760 7002760 7002760 7002760 Gasket—Slat Cover
28 7031484 7031484 7031484 7031484 Stat Cover, Coil and Gasket Assembly
29 7000614 7000614 7000614 7000614 Retainer—Stat Cover
30 7011270 7011270 7011270 7011270 Screw—Stat Cover
31 7016682 7016682 7016682 7016682 Rod—Choke
32 7005109 7005109 7005109 7005109 Clip—Choke Rod
33 7002267 7002287 7002287 7002287 Washer—Choke Rod
34 7031759 7031759 7031759 7031759 Intermediate Choke Shaft Assembly
34A 7019751 7019751 7019751 7019751 Dust Seal—Intermediate Choke Shaft
35 7016683 7016683 7016683 7016683 Intermediate Choke Rod
36 7005109 7005109 7005109 7005109 Clip—Intermediate Choke Rod
37 7026664 7026664 7026664 7026664 Choke Lever and Link Assembly
38 7019709 7019709 7019709 7019709 Screw—Piston Lever Attaching
39 7031870 7031870 7031870 7031870 Choke Piston
40 7010746 7010746 7010746 7010746 Pin—Choke Piston
41 7020667 7020667 7020667 7020667 Choke Shaft Assembly
42 7033443 7033443 7033443 7033443 Choke Valve
43 7007627 7007627 7007627 7007627 Screw—Choke Valve
44 7020669 7020669 7020669 7020669 Choke Lever and Collar Assembly
45 7003135 7003135 7003135 7003135 Plug—Expansion—Large
46 7002814 7002814 7002814 7002814 Plug—Lead Ball

FLOAT BOWL PARTS
47 7004597 7004597 7004597 7004597 Spring—Pump Return
48 7000286 7000286 7000286 7000286 Guide—Pump Discharge
49 7602118 7002118 7002118 7002118 Spring—Pump Discharge
50 7002117 7002117 7002117 7002117 Ball—Pump Discharge
51 7002120 7002120 7002120 7002120 Ball—Pump Inlet Check
52 7004557 7004557 7004557 7004557 Screen—Pump inlet
53 7029728 7021522 7029728 7021522 Float Bowl Assembly
54 7019533 7019533 7019533 7019533 Gasket—Venturi Cluster w/o A.I.R.
55 7029951 7031008 7029636 7031008 Venturi Cluster Assembly
56 7008502 7008502 7008502 7008502 Screw—Venturi Cluster—Outer
57 7009077 7009077 7009077 70090717 Screw—Venturi Cluster—Center
58 7008892 7008892 7008892 7008892 Gasket—Center Screw
59 120217 120217 120217 120217 Lockwasher—Outer Screws
60 7008664 7008664 7008664 7008664 Jet—Standard
61 7011989 7011989 7011989 7011989 Power Valve Assembly
62 7011990 7011990 7011990 7011990 Gasket—Power Valve
63 7029533 7031030 7031030 7031030 Cam—Fast Idle
64 7003561 7003561 7663561 7003561 Screw—Cam Attaching
65 7020684 7020684 7020684 7020684 Rod—Choke Unloader
66 1875293 1875293 1875293 1875293 Clip—Unloader Rod
67 — 7015127 — 7015127 Screw—Idle Compensator
68 — 7013341 — 7013341 Gasket—Idle Compensator
69 — 7028924 — 7028924 Idle Compensator Kit

THROTTLE BODY PARTS
70 7038185 7038185 7038185 7038185 Gasket—Throttle Body
71 7015105 7015105 7015105 7015105 Screw—Throttle Body
72 121744 121744 121744 121744 Lockwasher—Throttle Body Screw
73 1875293 1875293 1875293 1875293 Clip—Pump Rod
74 7029658 7029658 7029658 7029658 Pump Rod
75 7013347 7013347 7013347 7013347 Fast Idle Screw
76 7001690 7001690 7001690 7001690 Spring—Fast Idle Screw
77 7020681 7020681 7020681 7020681 Fast Idle Lever Assembly
78 7010435 7010435 7010435 7010435 Screw—Fast Idle lever
79 7002121 7002121 7002121 7002121 Idle Stop Screw
79A 7009728 7009728 7009728 7009728 Spring—Idle Stop Screw
80 7034559 7034559 7034559 7034559 Throttle Body Assembly
81 7041621 7041621 7041621 7041621 Idle Needle
82 7011479 7011479 7011479 7011479 Spring—Idle Needles
83 578912 578912 578912 578912 Gasket—Flange
