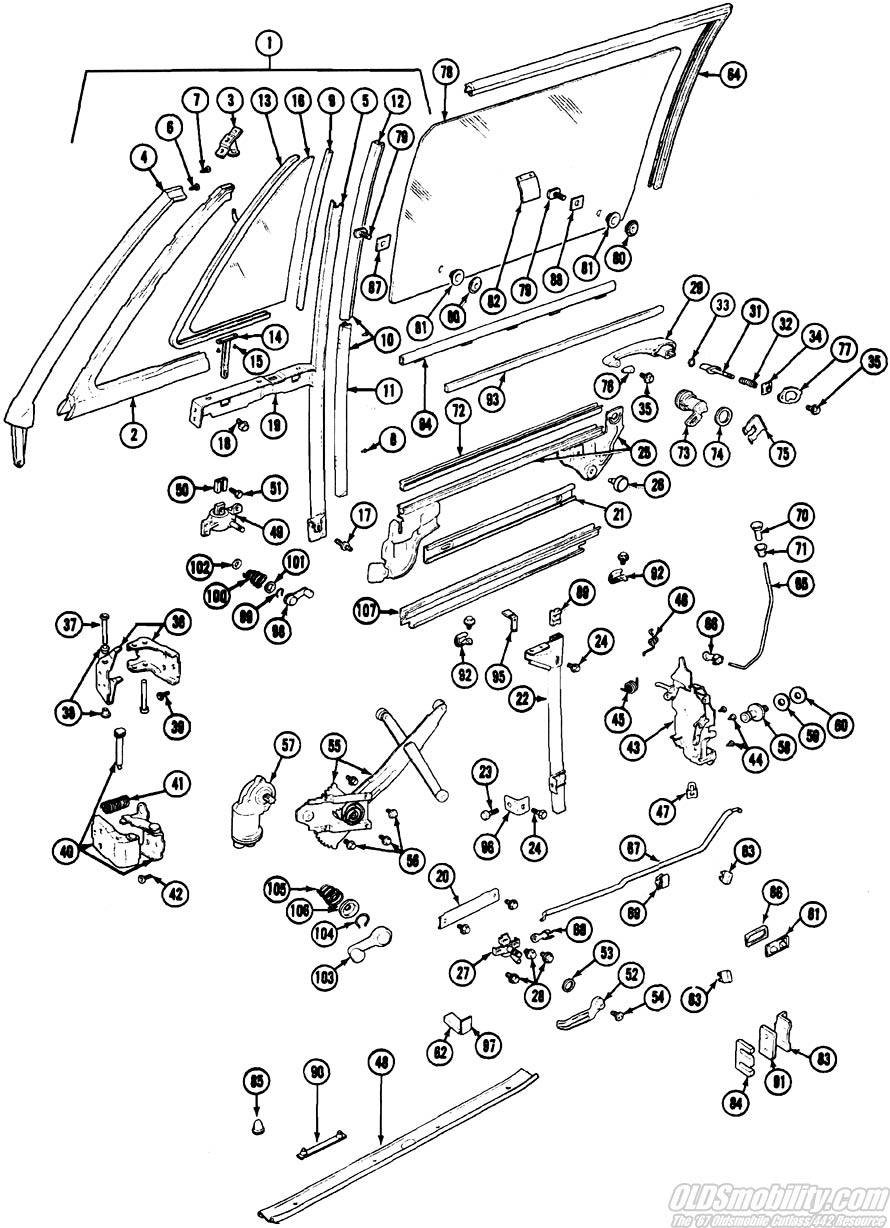

Group 10.000 Doors Hardware & Glass - Illustration 10




1968 FRONT DOOR HARDWARE (* HARDTOPS) (** EXC. HARDTOPS)
TYPICAL EXCEPT 1969-72 CONV. AND HOLIDAY COUPES

Ill. No. Group No. Description
1 10.650 VENTILATOR ASSY., door less glass
2 10.652 WEATHERSTRIP, door vent
** 3 10.669 SUPPORT, door vent upper pivot
* 4 10.656 FRAME, door vent
5 10.688 CHANNEL & SCALPS, door vent division
6 10.688 SCREW, door vent to division channel upper
* 7 10.688 SCREW, door vent division channel to frame
8 10.686 RIVET, door vent division channel to support
9 10.652 WEATHERSTRIP ASSY., door vent division channel
** 10 10.686 CHANNEL, door window glass run front
* 11 10.686 CHANNEL, door window glass run front lower
* 12 10.686 CHANNEL, door window glass run front upper
13 10.655 CHANNEL ASSY., door vent glass
14 10.657 SHAFT, door vent glass channel tee
15 10.669 RIVET, door vent pivot hinge
16 10.658 GLASS, door vent
17 10.670 STUD, door vent to inner panel
18 10.670 SCREW, door vent to inner panel
19 N.S.S. SUPPORT, division channel
20 10.792 CAM ASSY., door inner panel
* 21 10.687 CAM, door window lower sash channel
* 22 10.687 CAM, door window guide bar
* 23 10.687 SCREW, door window, guide rear to support
* 24 10.687 SCREW, door window guide rear to panel
* 25 10.685 CHANNEL ASSY., door window lower sash
* 26 10.685 ROLLER, door window lower sash channel
27 10.500 CONTROL ASSY., door lock remote
28 10.500 SCREW, door lock remote control to panel
29 10.527 HANDLE ASSY., door outside
31 10.529 BUTTON & SHAFT, door handle push
32 10.529 SPRING, door handle push button
33 10.529 RING, door handle push button sealing
34 10.529 WASHER, door handle push button stop
35 10.527 SCREW, door handle to door
36 10.450 HINGE ASSY., door upper (Incl. Items 37-38)
37 10.466 PIN, door upper hinge
38 10.464 BUSHING, door upper hinge
39 10.463 SCREW, door upper hinge to body & door
40 10.454 HINGE ASSY., door lower (Incl. Item 41)
41 10.455 SPRING, door lower hinge
42 10.463 SCREW, door lower hinge to body & door
43 10.470 LOCK ASSY., door
44 10.474 SCREW, door lock to inner panel
45 10.474 SPRING, door lock push button return
46 10.474 SPRING, door lock over center
47 10.474 CLIP, door lock spring
48 11.175 PLATE, door sill
49 10.661 REGULATOR ASSY., door ventilator
50 10.661 CLIP, door vent regulator tee shaft
51 10.670 SCREW, door vent regulator to tee shaft
52 10.512 HANDLE ASSY., door lock inside remote control
53 10.517 WASHER, door lock inside remote control handle
54 10.512 SCREW, door lock inside remote control handle
55 10.783 REGULATOR ASSY., door window
Ill. No. Group No. Description
56 10.783 SCREW, door window regulator to inner panel
57 10.783 MOTOR ASSY., door window regulator electric
58 10.569 STRIKER, door lock
59 10.571 SPACER (washer), door lock striker metal
60 10.571 SPACER (washer), door lock striker plastic
61 10.777 SWITCH & ESCUTCHEON, door window
62 10.716 BUMPER, door window stop
63 10.587 BUMPER, door lock pillar upper & lower
** 64 10.701 CHANNEL, door window glass run
65 10.563 ROD, door inside locking to lock
66 10.565 CLIP, door inner locking to lock rod
67 10.506 ROD, door lock remote control to lock
68 10.565 CLIP, door lock remote control to lock rod
69 10.565 CLIP, door lock remote control to panel
70 10.559 KNOB, door inside locking rod
71 10.560 FERRULE, door inside lock rod knob
72 10.685 FILLER, door window lower sash channel
(All styles except 39)
73 10.550 CYLINDER ASSY., door lock
74 10.551 GASKET, door lock cylinder
75 10.551 RETAINER, door lock cylinder
76 10.537 GASKET, door outside handle front
77 10.537 GASKET, door outside handle rear
78 10.681 GLASS, door window
* 79 10.685 BOLT, door window glass to lower channel
* 80 10.685 NUT, door window glass to lower channel
* 81 10.685 BUSHING, door window glass to lower channel
* 82 10.728 PLATE, door window guide rear
83 10.584 PLATE, door wedge body side (Conv. Only)
84 10.584 PLATE, door wedge door side (Conv. Only)
85 14.683 PLUG, door trim pad sealing
86 10.777 RETAINER, door window switch
* 87 N.S. FILLER, door window lower sash channel front
* 88 N.S. FILLER, door window lower sash channel rear
* 89 10.716 STOP, door window upper rear
90 10.694 STRIP, door bottom drain hole sealing
91 10.584 SPACER, wedge plate (Emergency Use)
* 92 10.710 STRIP, door window anti rattle
93 10.710 STRIP ASSY., door window inner at belt
94 10.710 STRIP ASSY., door window outer at belt
* 95 10.716 STOP, door window front up
* 96 10.765 SUPPORT, door window guide cam lower
** 97 10.716 SUPPORT, door window bumper
98 10.664 HANDLE ASSY., door vent regulator
99 10.513 SPRING, door vent regulator handle retaining
100 10.806 SPRING, door vent regulator handle
101 10.515 PLATE, door vent regulator handle bearing
102 10.665 WASHER, door vent regulator sealing
103 10.797 HANDLE ASSY., door window regulator
104 10.513 SPRING, door window regulator handle retaining
105 10.806 SPRING, door window regulator handle
106 10.515 PLATE, door window regulator handle bearing
** 107 10.685 CHANNEL ASSY., door window lower sash
